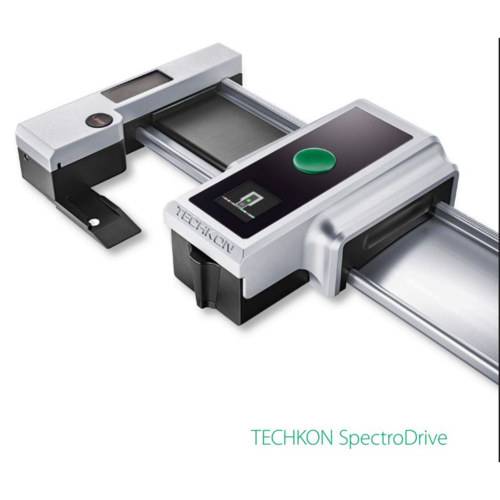

TECHKON SPECTRODRIVE

Specifications
Measurement geometry 0° : 45° optics according to ISO 5-4
Spectral range 400 to 700 nm in 10 nm steps, spectral resolution 10 nm, pixel distance sensor < 3 nm
Measurement aperture 1.5 mm, appropriate for measuring patches with at least
3 x 3 mm (h x w)
Light source LED, provides measurement conditions M0, M1, M2, M3
according to ISO 13655
Polarization filter Twice linear crossed, switched on and off per software command
Measurement time Approx. 160 mm/s for 4 mm patches (equals approx. 3 seconds
for 520 mm sheet length), single measurement approx. 1 second
(if SpectroDrive is used as hand-held device)
White reference Absolute and relative; absolute white standard integrated in
charging console
Illumination types A, C, D50, D65, F 2/7/11
Standard observer 2°, 10°
Density filter ISO/ANSI T, ISO/ANSI I, ISO E; spectral density Dmax
Density measurement range 0.00 – 2.50 D
Formats 52 (20”) for sheet format 00 (B3+, 370 x 520 mm); 74 (28”) for
sheet format 0B (B2+, 520 x 740 mm); 102 (40”) for sheet format
3B (B1+, 720 x 1020 mm); 105 (42”) for sheet format 3B+ (B1+,
780 x 1050 mm); special formats (up to 2060 mm) on request
Repeatability 0.01 D; 0.03 CIE ∆E*a*b*
Inter-instrument agreement 0.01 D; 0.3 CIE ∆E*a*b*
Display single measurement Color-OLED, 128 x 128 pixel
Data transmission WLAN module for wireless data transmission with PC-sided USB
connection
Power supply LiFePO4 battery, regulated recharge via charging console with
AC adapter, 100 – 240 V, 47 – 63 Hz
Weight Measurement device: 925 grams
Dimensions Measurement device: 59 x 96 x 170 mm (approx. 2.3 x 3.8 x 6.7 inches)

---
